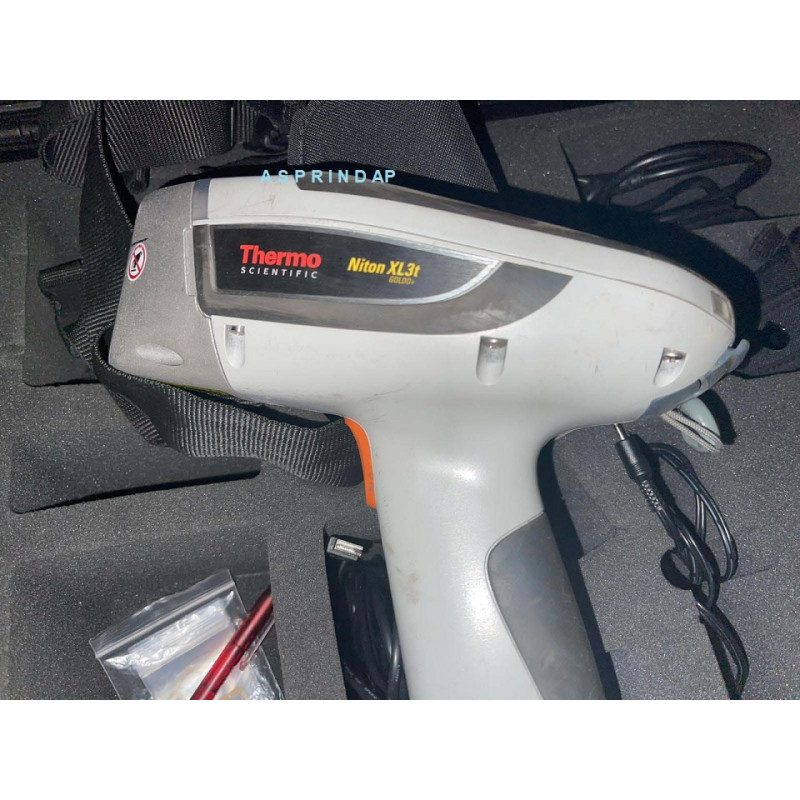

Niton XL3t 950 GOLDD XRF Analyzer

Niton XL3t 950 GOLDD XRF Analyzer

• Specifications

  Analytical RangeUp to 30 elements from Mg to U (varies by application)

  Available Analytical ModesVaries by application:Alloy Modes: Metal Alloy, Electronics Alloy, Precious MetalsBulk Modes: Soil, Mining, TestAllPlastic Modes: RoHS Plastics, Toy and Consumer Goods, Plastics, TestAll, Painted ProductsCustom Modes: Upon request (bas

  Certifications/ComplianceCE, RoHS

  Data EntryTouch-screen keyboard, user-programmable pick lists, optional wireless remote barcode reader

  Data Memory32MB internal system memory/128 MB internal user storage

  Data StorageInternal >10,000 readings with spectra

  Data TransferUSB, Bluetooth and RS-232 serial communication

  DescriptionNiton XL3t GOLDD+ XRF Analyzer

  Dimensions (L x W x H)9.6 x 9.05 x 3.75 in. (244 x 230 x 95.5 mm)

  Display TypeTilting, color, touch-screen display

  Height (English)3.75 in.

  Height (Metric)95.5 mm

  Item DescriptionXL3t GOLDD+ XRF Analyzer

  Length (English)9.6 in.

  Length (Metric)244 mm

  LicensingVaries by region. Contact your local distributor.

  Max. Power2W

  Operating SystemOwnership

  Optional Accessories3mm small-spot collimation; Portable test stand; stationary (benchtop) test stand; mobile test stand, Field Mate; Thermo Scientific™ Extend-a-Pole™; Welding mask; Thermo Scientific™ HotFoot™ hot surface adapter; Soil testing guard

  Power Consumption0 to 200µA

  Security FeaturesPassword-protected user security

  Standard AccessoriesIntegrated CCD camera for locating and storing images; Locking shielded carrying case; Shielded belt holster; Two lithium-ion battery packs; Spare battery pack; 110/220 VAC battery charger/AC adaptor; PC connection cables (USB and RS-232); Thermo Scientific™ Niton Data Transfer (NDT™) PC software; Safety lanyard; Check samples/standards

  System Electronics533 MHz ARM 11 CPU, 300 MHz dedicated DSP, 80 MHz ASICS DSP for signal processing

  Tube TypeAg anode 50 kV and 200 μA

  Voltage6 to 50 kV

  Weight (English)3 lb.

  Weight (Metric)1.3 kg

  Width (English)9.05 in.

  Width (Metric)230 mm

  ApplicationsSample Identification, Positive Material Identification

  Detector TypeGeometrically Optimized Large Area Drift Detector

  Tube Voltage6 to 50 kV

  Unit SizeEach

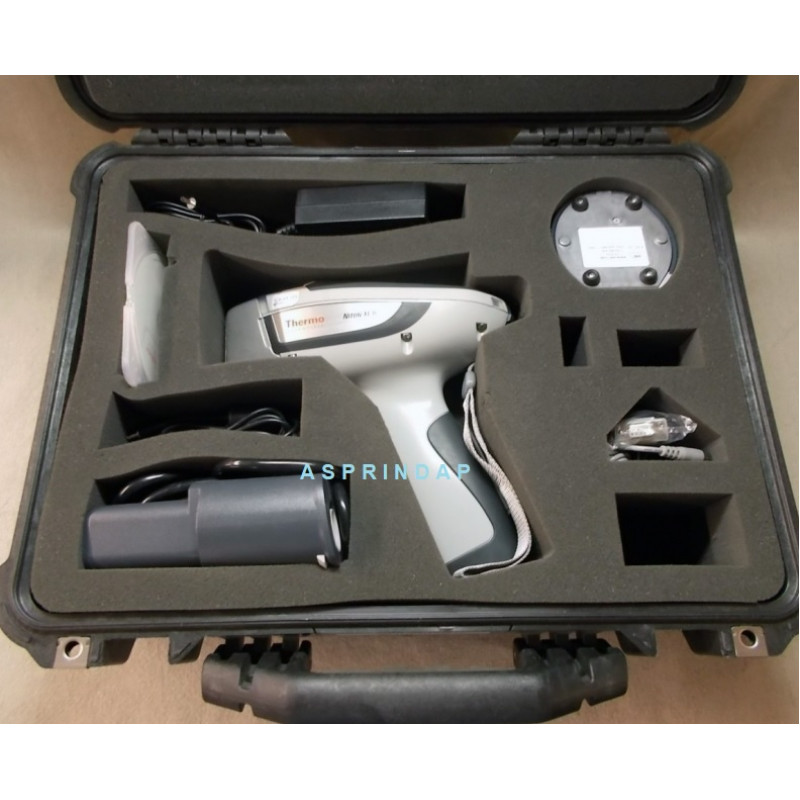

• Includes:
  1 Thermo Scientific Niton XL3t 950 Goldd+
  1 General Metals/Precious Metals/Mining/Coatings/Pb Paint
  1 Collimator/Camera
  2 Batteries
  1 Battery charging dock
  1 User Instructions
  1 Hard Carrying case
  1 Cal Sample
  1 Helium Purge
  1 Spare Windows
  1 Certificate Calibration
