Zetec Topaz 64 Portable Channel Phased Array
- Brand: Zetec
- Product Code: Zetec Topaz 64
- Availability: In Stock
$16,800.00

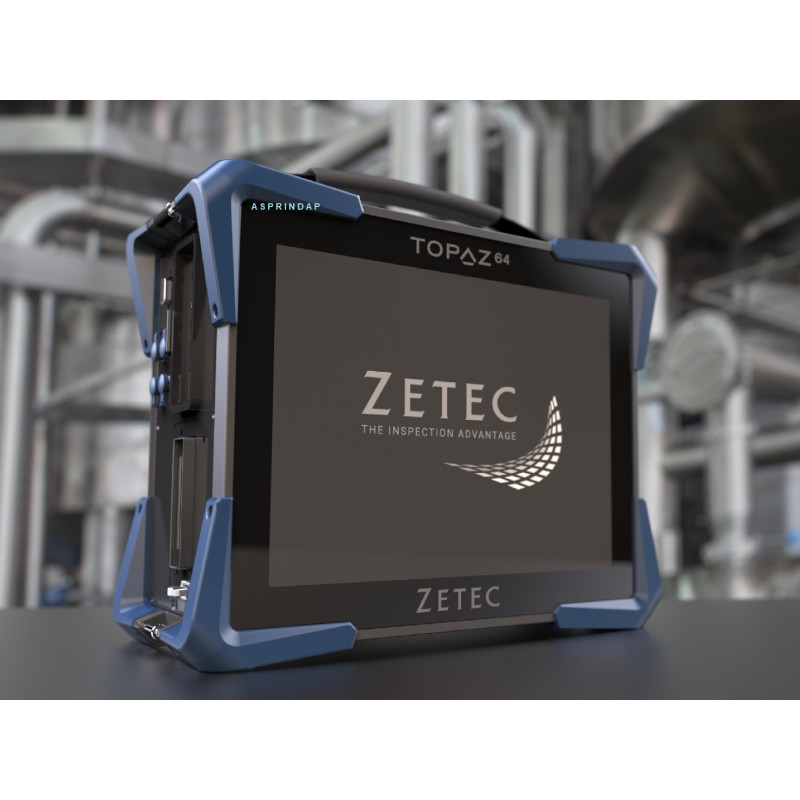

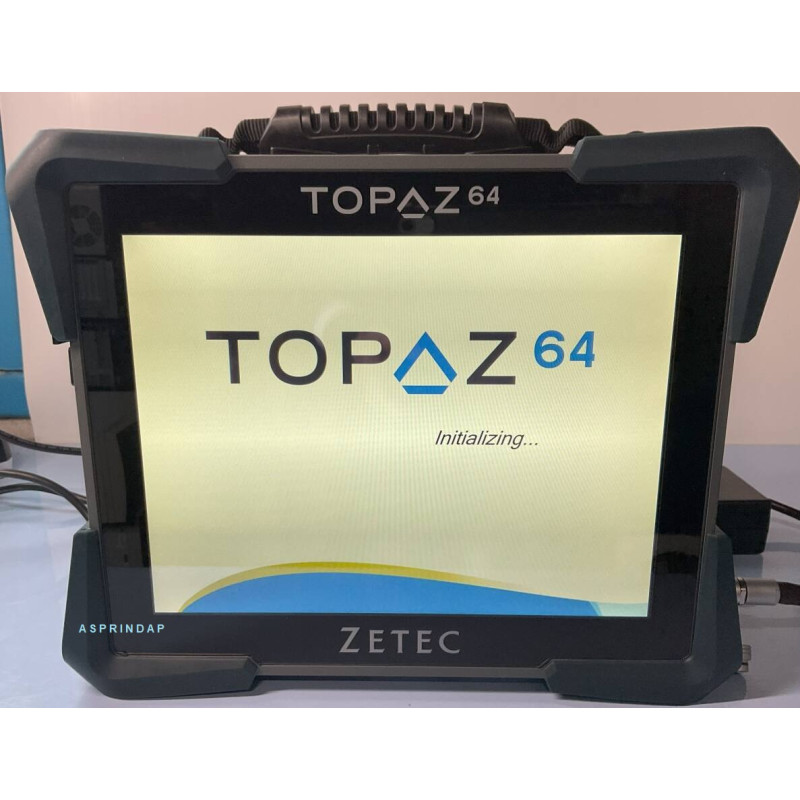

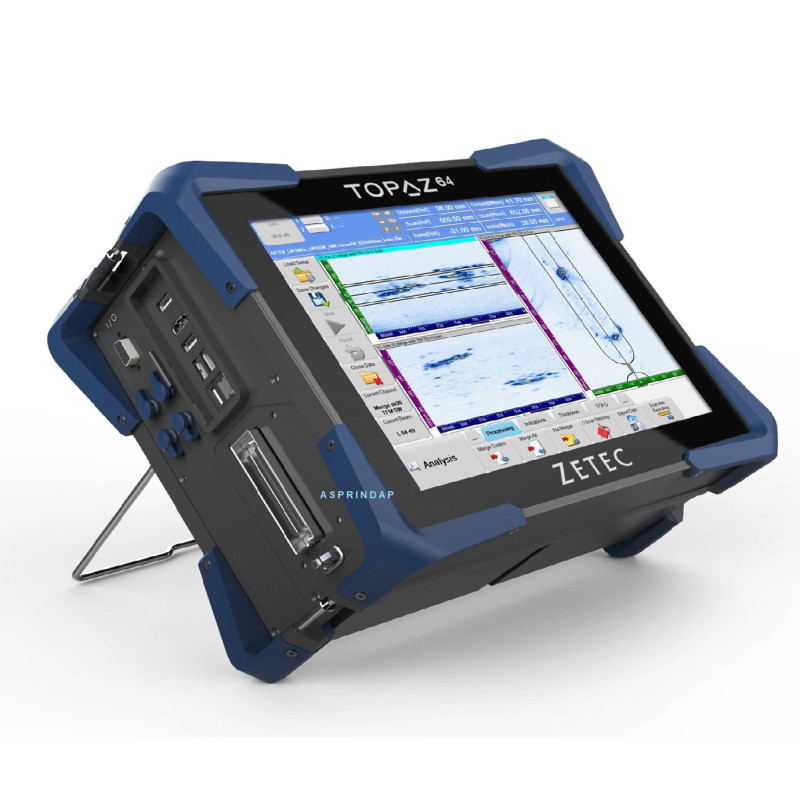

Zetec Topaz 64 Portable Channel Phased Array
The Zetec TOPAZ64 is a fully integrated, portable, 64 channel Phased Array Ultrasonic Testing instrument which enables you to complete faster and more accurate inspections. The Topaz 64 is ideal for use in the Oil & Gas, Power Generation, Manufacturing, and Transportation industries. This instrument features 64 active channels for fast and accurate inspections in welds, complex components, and corrosion mapping. The Topaz 64 is also suited to encoded or manual inspections.
The Topaz 64 utilizes advanced technologies to achieve accurate UT inspections, including:
- Code Compliant 64/128PR Phased Array UT
- High Resolution Full Matrix Capture (FMC)
- Total Focusing Method (TFM) up to 1M Data Points per Frame
- Time of Flight Diffraction (TOFD)
- Real-Time Images
- Online/Offline Data Analysis
64/128PR phased array configuration and 2 separate conventional UT channels at 200 V
Best-in-class “live” TFM resolution delivering 65k points frame, up to 110 Hz
12” high-resolution multi-touch display with unmatched image quality
Bipolar pulsers provide more energy to punch through thick components
Save raw A-Scan data for record-keeping compliance or TFM post-processing without the need to rescan
Supports 2D matrix arrays in pulse echo, pitch & catch or multiprobe configurations without the need for any external software
Hot swappable sequential discharge configuration for batteries
