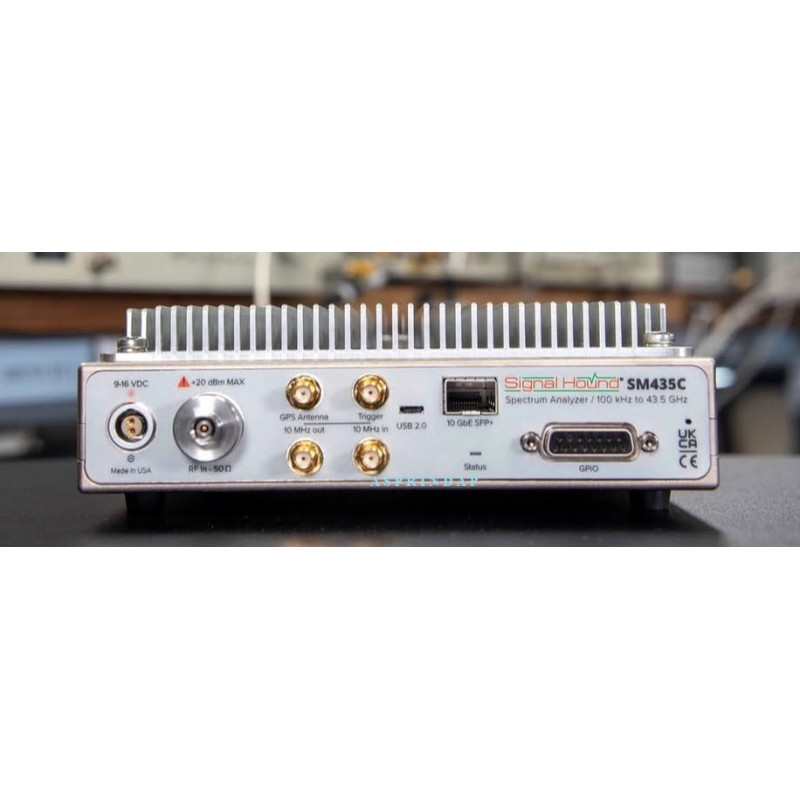

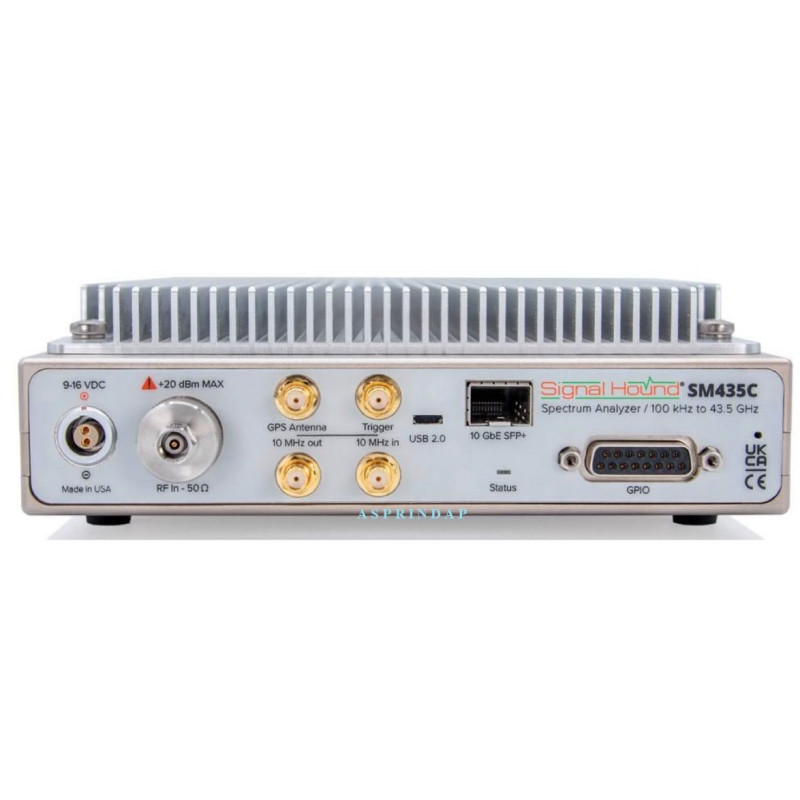

Signal Hound SM435C — 43.5 GHz Real-time Spectrum Analyzer
- Brand: Signal Hound
- Product Code: SM435C — 43.5 GHz
- Reward Points: 400
- Availability: In Stock
$25,500.00
- Price in reward points: 200
Signal Hound SM435C is a real-time spectrum analyzer that operates at a frequency range of up to 43.5 GHz and includes 10GbE (10 Gigabit Ethernet) capabilities. This makes it suitable for a variety of applications
Features:
An SFP+ port for fast, long-distance communication with a PC using an optic cable
160 MHz continuous streaming I/Q over 10GbE SFP+
Device control and data transfer occurs via SFP+ connection, not USB
Tunes range of 100 kHz to 43.5 GHz
20 MHz to 43.5 GHz sub-octave preselector
Sweeps at 1 THz/sec at 30 kHz RBW
110 dB of dynamic range
Ultra-low phase noise
GPIO port for antenna switching
