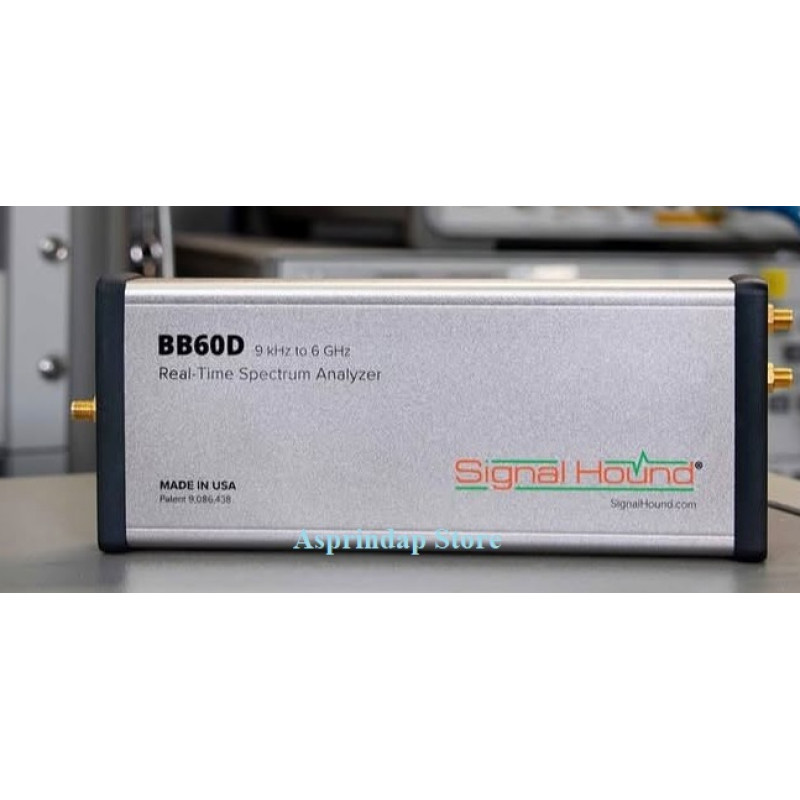

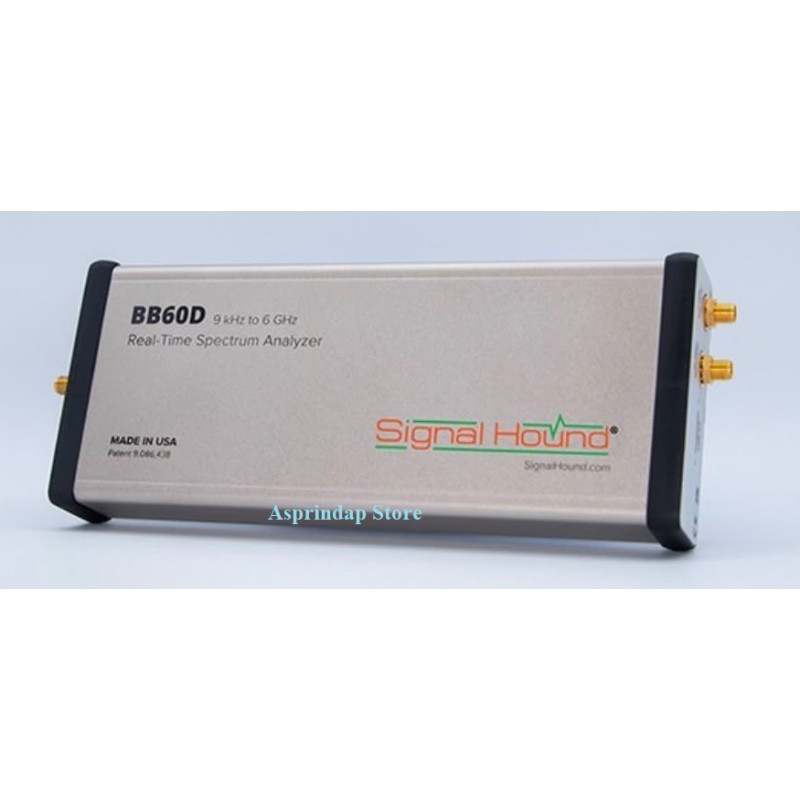

Signal Hound BB60D 6GHz Real Time Spectrum Analyzer
- Brand: Signal Hound
- Product Code: BB60D
- Reward Points: 200
- Availability: In Stock
$3,900.00
The BB60D includes the same performant features of the popular BB60C but offers 10 dB more dynamic range and preselector filters from 130 MHz to 6 GHz.
A 6 GHz real-time, high-speed spectrum analyzer, the BB60D streams 140 MB/sec of digitized RF to your PC over USB 3.0, providing an instantaneous bandwidth of 27 MHz, and sweeping at speeds of 24 GHz/sec. Add a high-speed hard drive to your PC or laptop (250 MB/s sustained write speed), and the BB60D doubles as an RF recorder, streaming up to 80 million IF samples per second, or 40 million I/Q samples to disk.
Spectrum analysis can be performed with the BB60D utilizing our proprietary application programming interface (API) which can execute up to 1.2 million FFT spectrums or 320 million FFT points every second, delivering real-time spectrum data to our GUI application, Spike, or to your own software application.
1.Frequency Range: Covers from 9 kHz to 6 GHz, making it versatile for various RF signals.
2.Real-Time Analysis: Offers real-time spectrum analysis, allowing you to observe transient events and signals that might be missed with traditional swept analysis methods.
3.High Dynamic Range: Provides a high dynamic range, enabling the detection of weak signals in the presence of stronger ones.
4.Portability: Designed to be lightweight and compact, making it suitable for field use.
5.User Interface: Often comes with a user-friendly interface, typically featuring a touchscreen for ease of use.
6.Connectivity: May include options for USB, Ethernet, or other connectivity features for data transfer and remote operation.
7.Software Integration: Can be paired with software for extended analysis, logging, and visualization of spectrum data.
