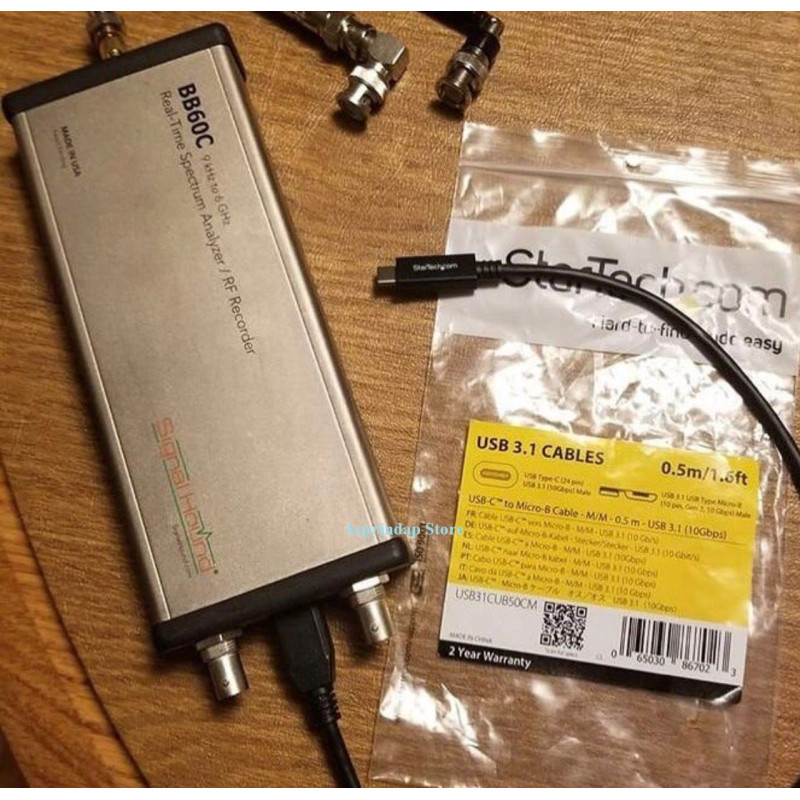

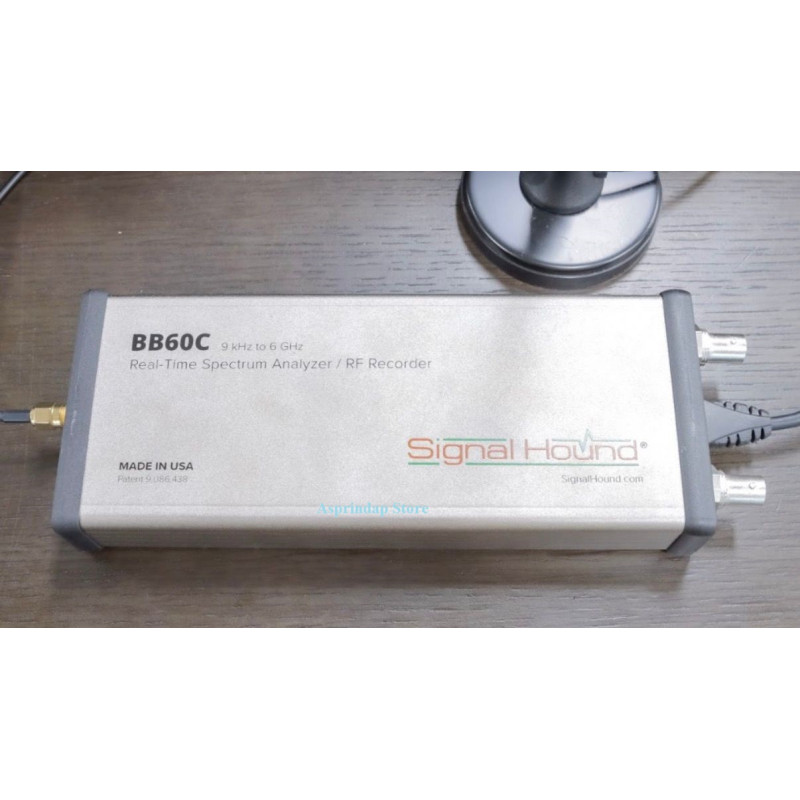

Signal Hound BB60C 6GHz Real Time Spectrum Analyzer

The Signal Hound BB60C Spectrum Analyzer is a compact real-time spectrum analyzer designed to operate in the 6 GHz frequency range. It’s particularly useful for applications such as wireless communications, signal monitoring, and spectrum management.

RF Frequency Range: 9 kHz to 6 GHz
Wide dynamic range: -151 dBm to +10 dBm
Resolution bandwidths (RBW) of 10 Hz to 10 MHz
No external power supply needed – draws power from USB
Powerful Digital Signal Processing happens on the PC
Software and Hardware included for one low price
Use our API (Application Programming Interface) to develop your own applications
Get started quickly by customizing the included open-source GUI.
Digitized IF Data at 80 million samples per second
20 MHz instantaneous bandwidth
Up to 24 GHz/sec sweep speed (≥10 kHz native RBW)
Compatible with Windows 7 and Windows 8 operating systems
USB 3.0 SuperSpeed communications
140 MB/sec sustained throughput to PC
Measures only 8.6 inches long
