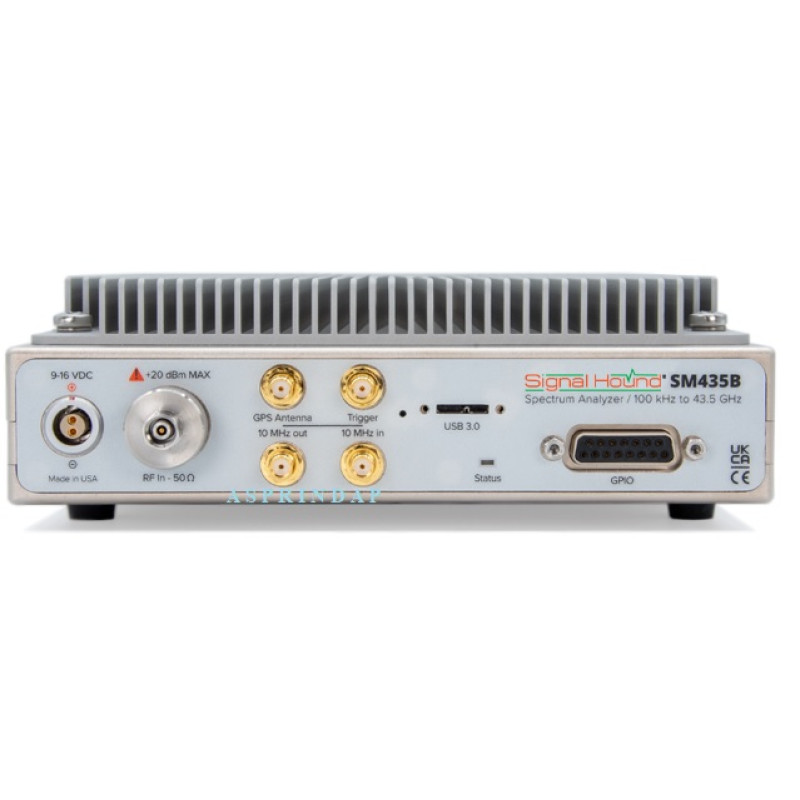

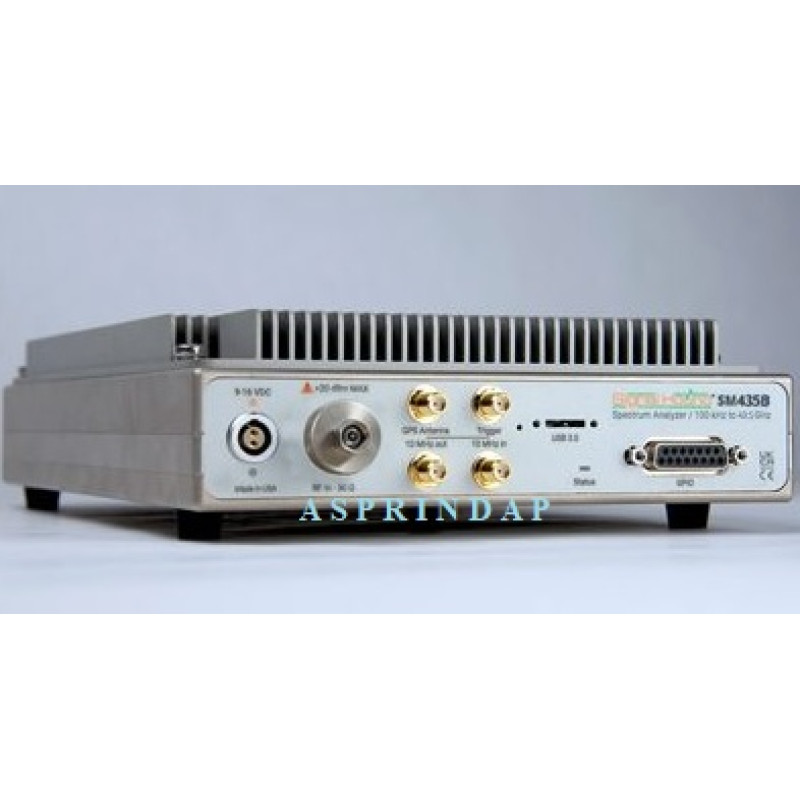

Signal Hound SM435B — 43.5 GHz Real-time Spectrum Analyzer
- Brand: Signal Hound
- Product Code: SM435B — 43.5 GHz
- Reward Points: 300
- Availability: In Stock
$19,800.00
- Price in reward points: 400
The Signal Hound SM435B – 43.5 GHz is a real-time spectrum analyzer that operates at a frequency of 43.5 GHz, making it suitable for a range of applications, including telecommunications, radar, and electronic warfare.
Features :
• Frequency range: 100 kHz to 43.5 GHz
• RF Input Impedance (2.4mm connector): 50Ω
• Calibrated Streaming I/Q: 5 kHz to 40 MHz of selectable I/Q bandwidth
• Includes an internal GPS, used for timebase synchronization, I/Q timestamping, and GPS positioning
• Resolution Bandwidths (RBW): 0.1 Hz (≤200kHz span) to 3 MHz (any span) using 40 MHz IBW; 30 kHz to 10 MHz using 160 MHz IBW
• Timebase Accuracy: GPS disciplined OCXO remains within ±5 x 10-10 when locked to GPS
– holdover of ±5 x 10-9 /day for aging (±2 x 10-8 first day typ)
– holdover of ±1 x 10-8 for temperature over -40°C to 65°C
