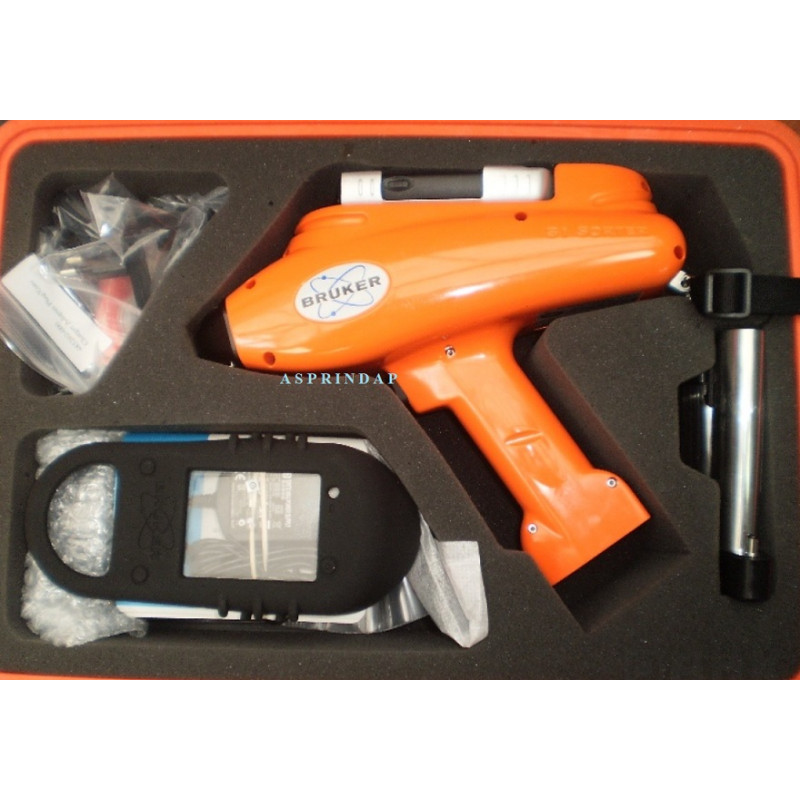

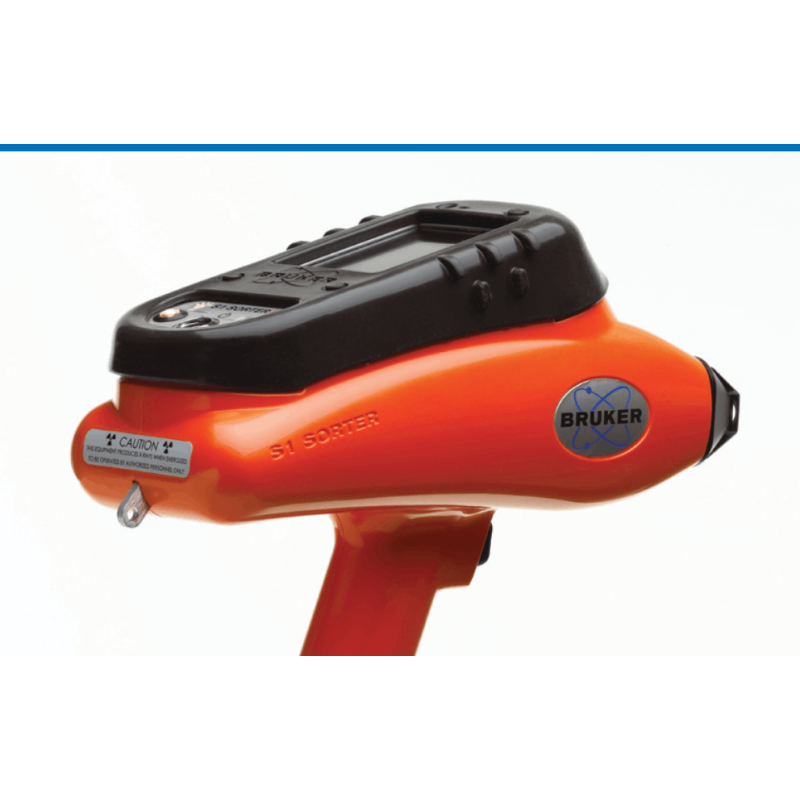

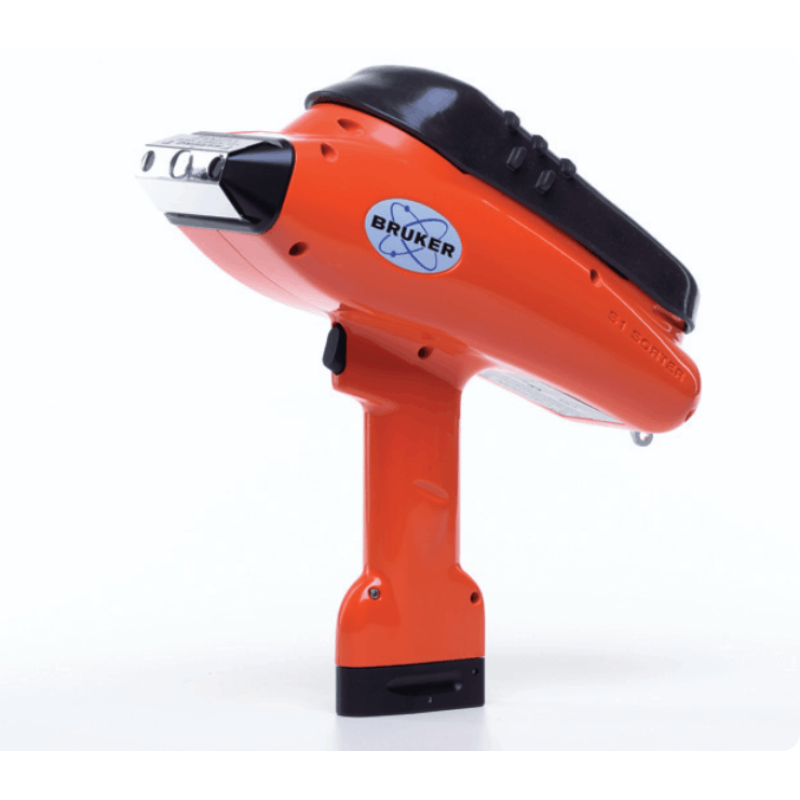

Bruker S1 Sorter Handheld XRF Analyzer

The Bruker S1 SORTER is a handheld X-ray fluorescence (XRF) analyzer designed specifically for rapid, non-destructive metal analysis and scrap sorting. It is an earlier generation of Bruker's handheld XRF technology, preceding the current S1 TITAN series.

• Detector: Uses a SiPIN diode detector, which is reliable for identifying standard heavier elements but generally slower than the newer Silicon Drift Detectors (SDD).
• Excitation: Features an X-ray tube with an Ag (Silver) target and a maximum voltage of 40 kV.
• Physical Specs: Weighs approximately 2 kg (4.4 lbs) with batteries and has a rugged design for field use.
• Operating System: Runs on Microsoft Windows Mobile 5.0 for Pocket PC.
• Temperature Range: Capable of measuring hot surfaces up to 500°C.

• Scrap Metal Recycling: Fast sorting of ferrous and non-ferrous alloys to determine scrap value and identify "tramp" elements.
• Alloy Identification: Pre-calibrated for standard alloy groups including stainless steel, tool steel, low alloy steel, and copper/nickel alloys.
• Positive Material Identification (PMI): Used in industrial settings to verify that the correct metals are being used in fabrication.

If there is any question about this bruker s1 sorter analyzer, please feel free to contact us.
