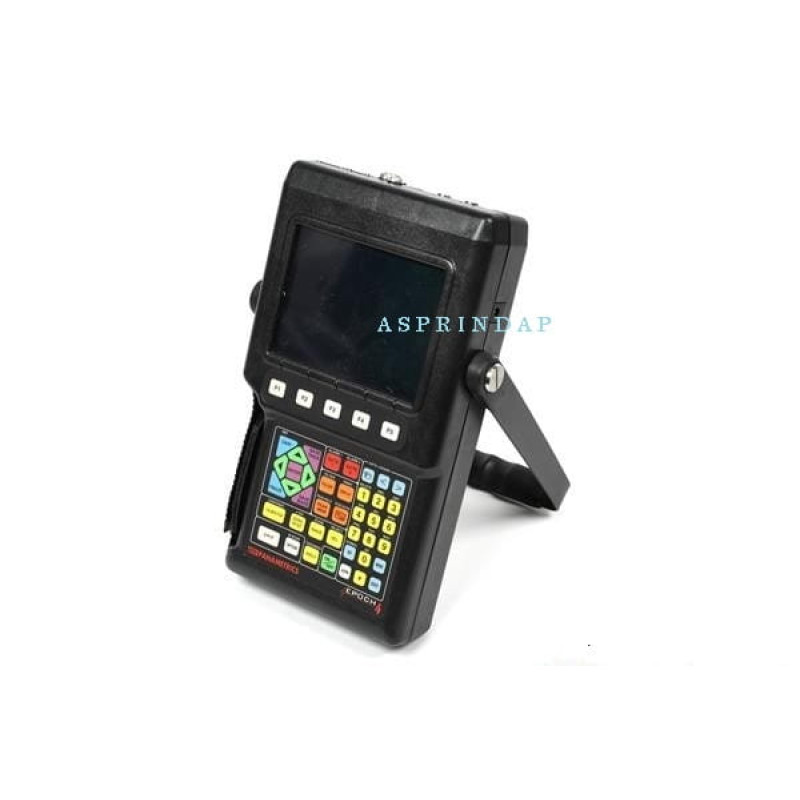

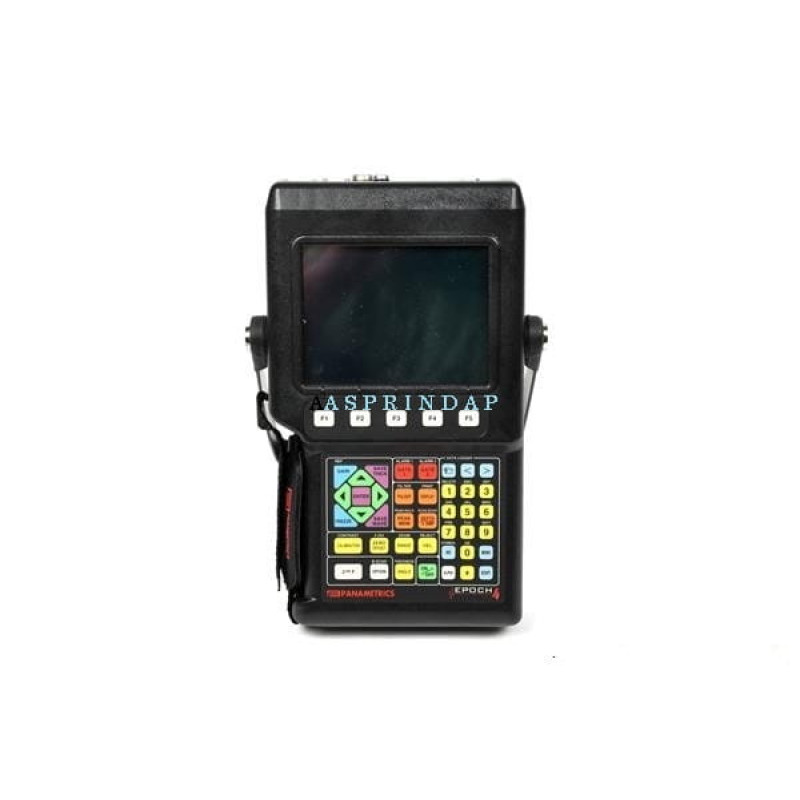

Panametrics Epoch 4 Ultrasonic Flaw Detector

Panametrics Olympus EPOCH 4 B Handheld Digital Ultrasonic Flaw Detector - Excellent Working Condition

The Tunable Square Wave Pulser along with Narrowband filtering produce class-leading material penetration and signal-to-noise ratios in difficult materials such as cast metals, large forgings, composites, and plastics.

Features Panametrics Epoch 4 Ultrasonic Flaw Detector:

• Customizable narrowband filtering
• Selectable, tunable square wave or negative spike excitation pulser
• Light, ergonomically designed (5.7 lbs / 2.6 kg)
• Fast minimum 60 Hz display update rate
• High-power NiMH battery
• Large, bright, high-resolution ELD with full/split screen views
• Automated transducer calibration
• 400" (10,000 mm) full screen range at longitudinal velocity of steel
• Superior minimum range capability (0.038" or 1 mm full scale at longitudinal velocity of steel)
• Display Freeze holds waveform and soundpath data
• Soundpath data viewable in inches, millimeters, or microseconds
• Peak Hold and Peak Memory
• RF display mode
• Alarms, threshold positive/negative, or minimum depth
• Dual Gate with Echo-to-Echo measurements
• Security Key enables remote upgrade or software options

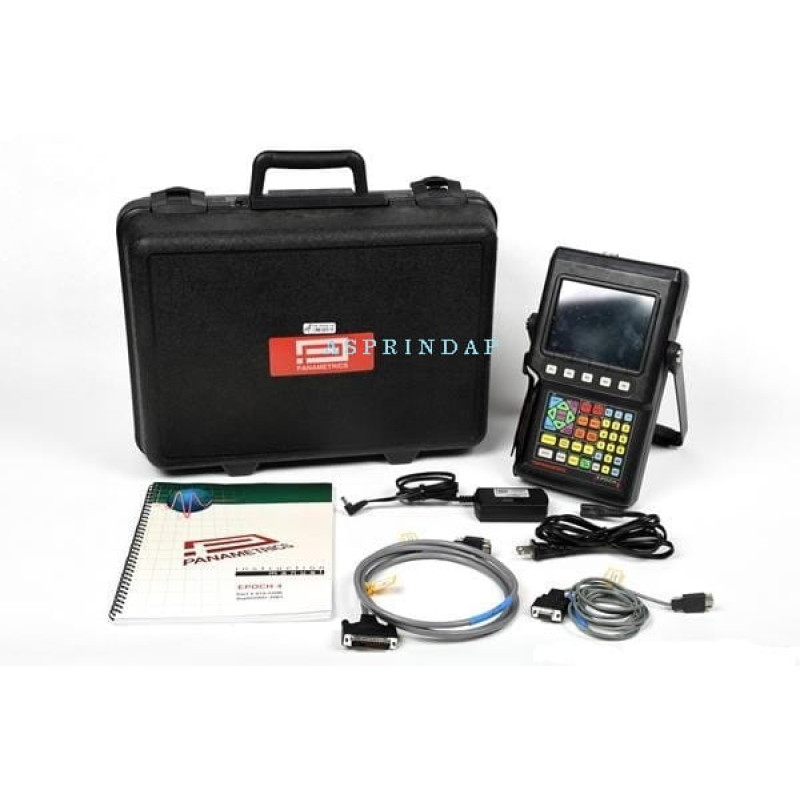

Whats in the box Panametrics Epoch 4:

• Mini Charger Adapter
• Instruction Manual
• Transport Case
• Stainless Steel Pipe Stand
• Parallel port cable
• Serial Port Cable

Please feel free to contact us if you have any questions about the Panametrics Epoch 4 Ultrasonic Flaw Detector.
