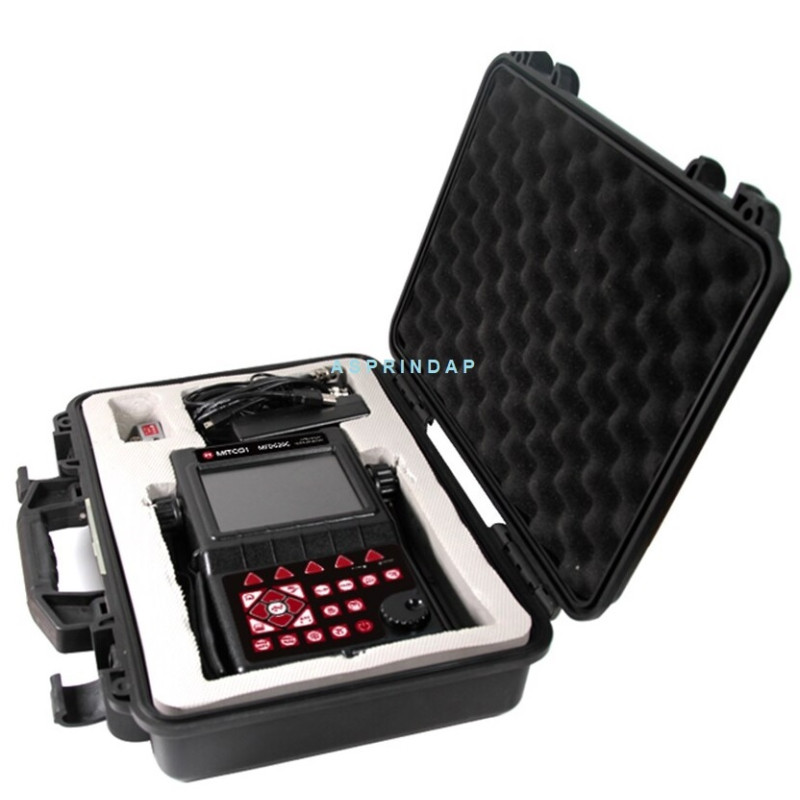

Mitech MFD620C Ultrasonic Flaw Detector - low price
- Brand: Mitech
- Product Code: Mitech MFD620C
- Availability: In Stock
$4,300.00
The MFD620C is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port.
The instrument incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials.
| Model Number | MFD620C |
|---|---|
| Unit | 1 unit |
| Protection Level | IP54 |
| DataPro Software | Yes |
| Bandwidth (MHz) | 0.5 to 10, automatic matching according to the probe frequency |
| Velocity (m/s) | 1000-15000 |
| Dynamic Range (dB) | ≥ 36 |
| Vertical Linear Deviation | ≤ 3% |
| Horizontal Linear Deviation (%) | ≤ 0.2 |
| Rejection | (0 to 80)% Linear without affecting the linearity and gain |
| Noise Level (%) | ≤ 10 |
| Power Voltage (V) | 220 |
| Blind Area (mm) | 5 |
| Communication Interface | High Speed USB2.0 port |
| Overall Dimensions (mm) | 280x220x70 |
| Measurement Range (mm) | 0 – 6000 (in steel) |
| Video Recording (hours) | >2 |
| Display (pixels) | 320×240 (multi-color TFT LCD) |
| Operating Temperature (°C) | -10 to 50 |
| Relative Humidity (%RH) | 20-95 |
| Berat (Kg) | 5.5 |
