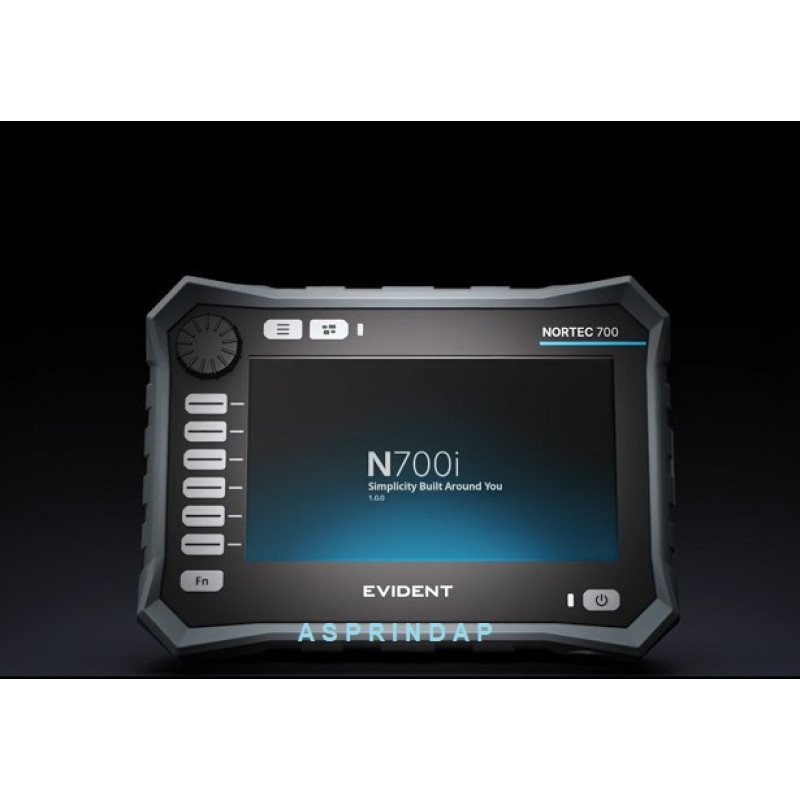

Nortec 700 Eddy Current Flaw Detector - sale
- Brand: Evident
- Product Code: Nortec 700
- Availability: In Stock
$2,950.00
NORTEC 700 Eddy Current Flaw Detector Features:
Combines conventional eddy current testing and eddy current array inspection in one instrument.
Advanced probe technology delivers high quality signal performance and detailed imaging.

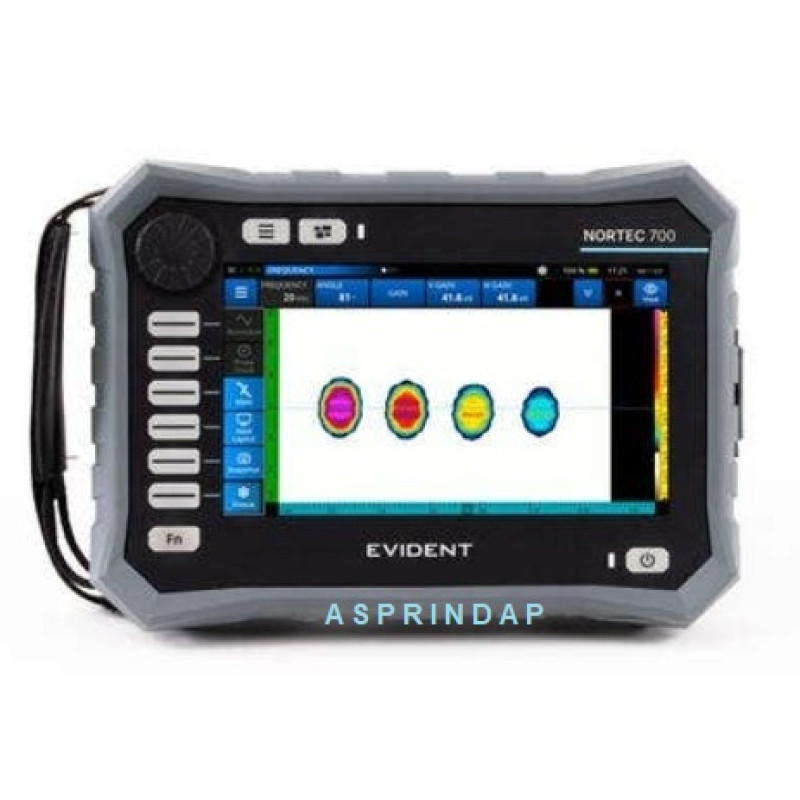

High fidelity imaging improves flaw visualisation and inspection confidence.
User friendly interface reduces operator learning time and simplifies inspections.
Supports dual frequency eddy current inspections for enhanced detection capabilities.
Integrated bolt hole inspection functionality for demanding aerospace and industrial applications.
Designed to improve inspection efficiency while reducing operational costs.
Suitable for detecting surface and near surface defects in conductive materials.
Built for demanding nondestructive testing environments across multiple industries.
Standardises premium inspection technology in a streamlined portable platform.
| Housing Dimensions | 230.7mm × 166.9mm × 71.9mm (9.1 in. × 6.6 in. × 2.8 in.) |
| Weight | 1.79kg (3.95 lb.), including lithium-ion battery |
| IP Rating | Rated IP65 |
| Battery Model and Type | 600-BAT-L-2 (Li-ion) [U8760058] |
| Battery Life | Minimum 8 hours for standard ECT inspections |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) operating temperature range at 80% relative humidity |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) [with batteries] |
| Display Type | 7-inch TFT LCD (thin-film-transistor liquid crystal display) |
| Display Dimensions (WxH, Diagonal) | 154.2mm × 85.9mm, 177.8mm (6.1 in. × 3.4 in., 7.0 in.) |
| Power (DC-IN Voltage) | 24 VDC (60 W) |
| DC Connector | Circular, 2.5mm pin adapter, center-positive |
| Data Storage | 64 GB internal storage |
| Wi-Fi | Optional |
| Bluetooth | Optional |
| Frequency Range | 5 Hz to 12.5 MHz |
| Gain | 0–100 dB; 1-dB increments; linked and independent, vertical and horizontal |
| Alarm Quantity | 3 (independent) |
| Available Alarm Types | Choices of BOX (rectangle), POLAR (circle), SECTOR (pie), SWEEP (time-based), CONDUCTIVITY, and COATING THICKNESS |
| Angle | 0–359.9° |
| Array Capacity | Up to 128 time slots |
| Number of Inputs | 2 |
| Drop-Tested | Method 516.6 Procedure IV, 26 drops, package for shipment |
| Shock-Tested | MIL-STD-810F, Method 516.5 Procedure I, 6 cycles each axis, 15G, 11 ms half sine shock testing |
| Vibration-Tested | MIL-STD-810F, Method 514.5 Procedure I, Annex C, Figure 6, general exposure; 1 hour each axis vibration test |
| Filters | Low-pass: 10 Hz to 2000 Hz and wide band. High-pass: off or 5 Hz to 1000 Hz, user-selectable in constant “figure 6” or “figure 8” filter type |
| Drive Voltage | 2 V p-p, 4 V p-p, 8 V p-p (low, medium, high) |
| Data Resolution | 32 bits |
| Sample Rate | Up to 30 kHz |
| Connectivity |
|

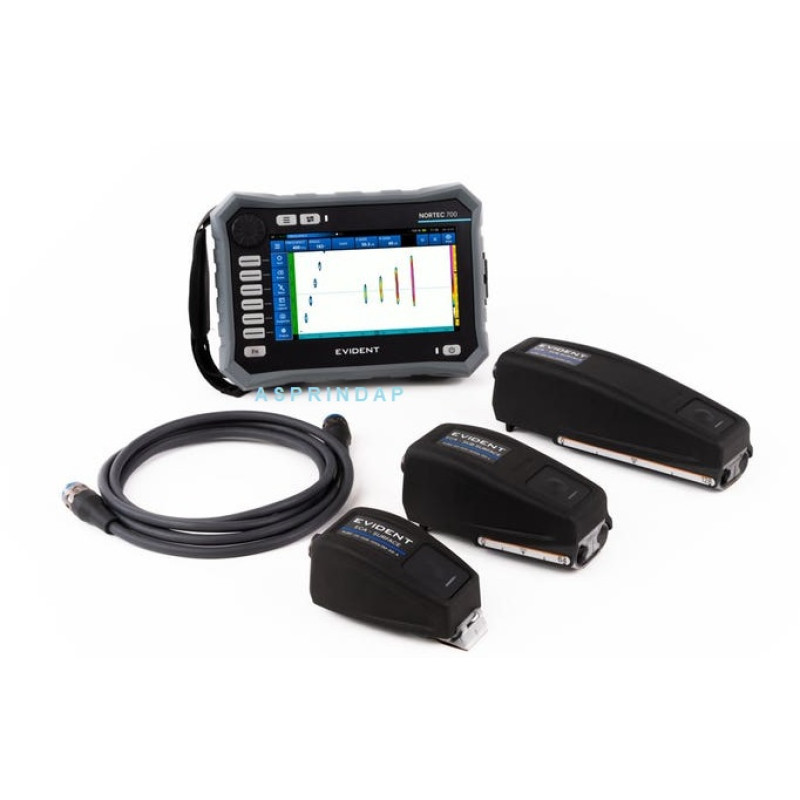

| Probe Types | Absolute and differential, in either bridge or reflection configuration. The instrument is fully compatible with NORTEC PowerLink probes, as well as other main probe and accessory suppliers. |
Available for product NORTEC 700D and NORTEC 700i
