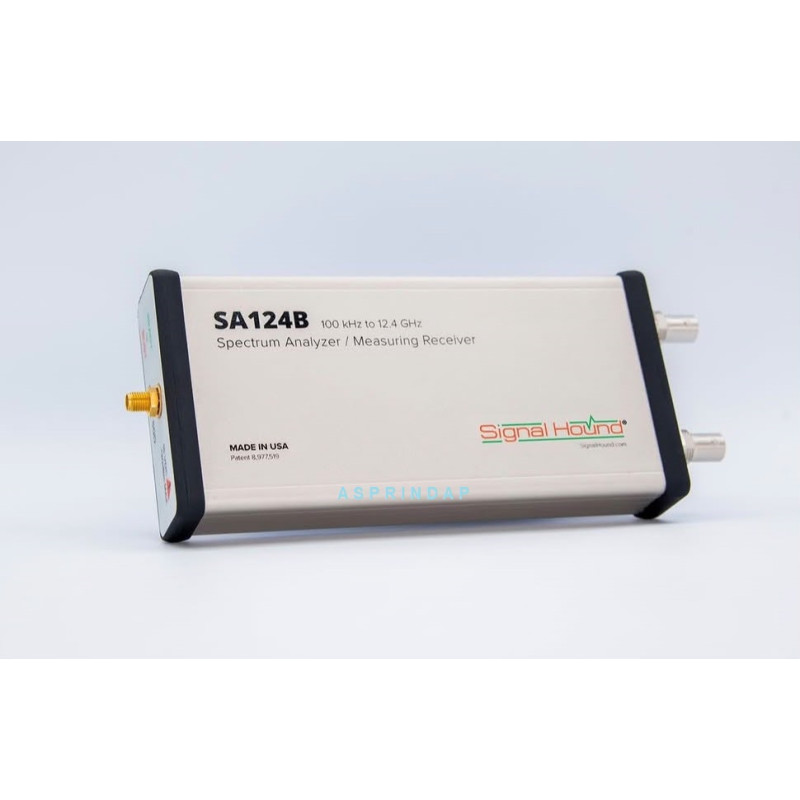

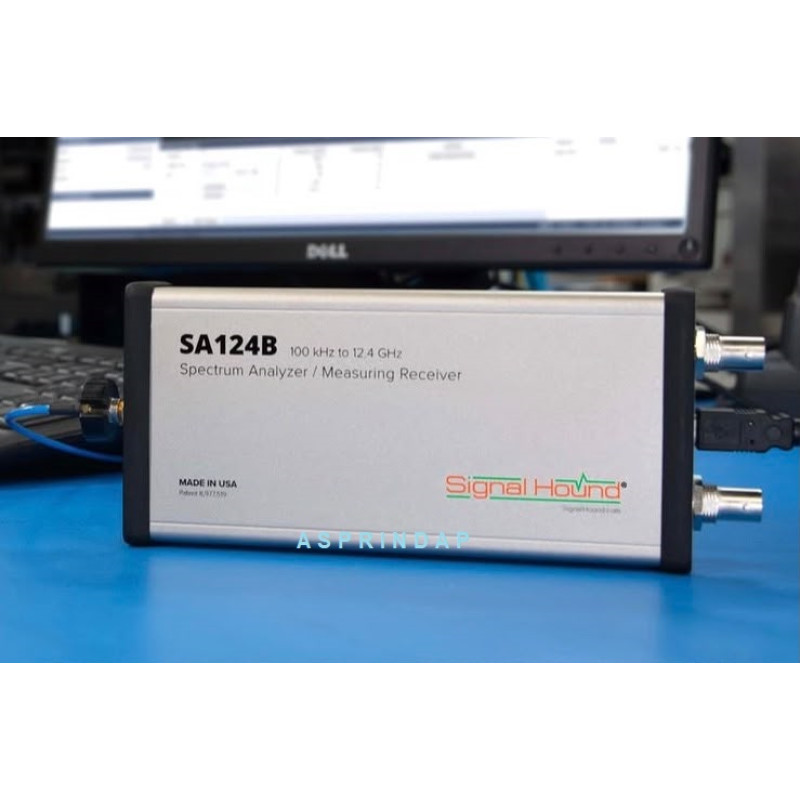

Signal Hound SA124B — 12.4 GHz Spectrum Analyzer

RF Frequency Range: 100 kHz to 12.4 GHz
Wide dynamic range: -151 dBm to +10 dBm
Resolution bandwidths (RBW) of 0.1 Hz to 250 KHz and 6 MHz
- 6 MHz RBW available as an analog IF output centered at 63 MHz
  - Corresponds to U.S. analog / digital TV Channel 3
Includes a High Dynamic Range Measuring Receiver
- 0.25 dB relative accuracy
- 0 dBm to -125 dBm, 100 kHz to 1 GHz
- 0 dBm to -115 dBm, 1 GHz to 4 GHz
- Adjustable digital audio filters
- Accurate AM and FM measurements
No external power supply needed – draws power from a dual USB cable
Powerful Digital Signal Processing happens on the PC

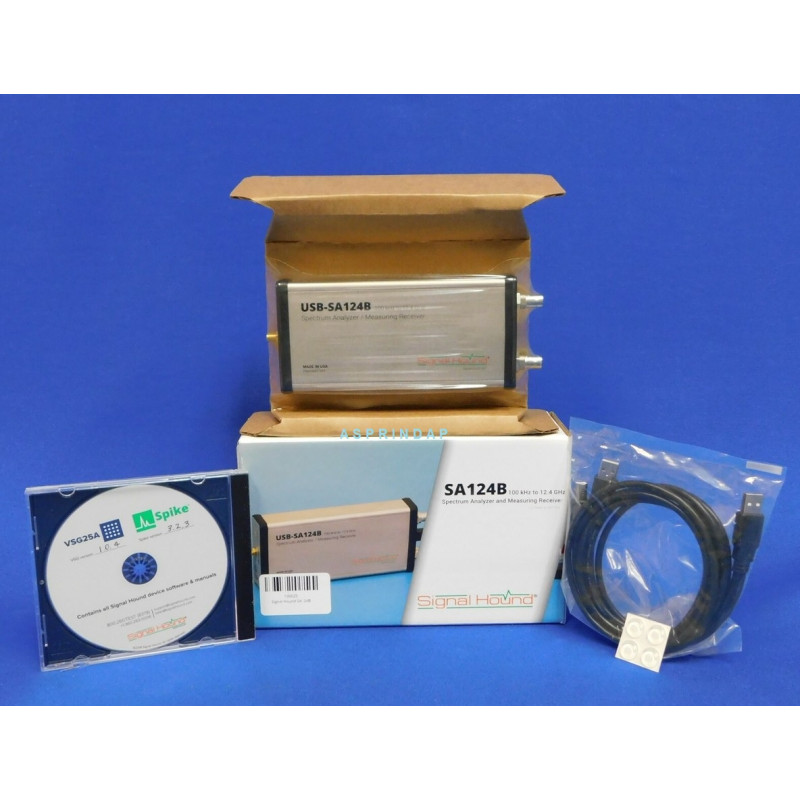

Software and Hardware included for one low price
Additional Third-Party Software Packages are available
- TSCM software is available, and is being marketed
  as “Kestrel TSCM Software” through www.pdtg.ca
Write your own software with our free Application Programming Interface (API)
- I/Q Data up to a 240 KHz bandwidth
- Frequency Sweeps up to 140 MHz per second
Compatible with Windows 7/8/10 32-bit and 64-bit operating systems.
AM and FM Demodulation Measurements
USB 2.0 communications at 480 MBPS
Demodulates AM/FM/SSB/CW audio in real-time
Automation capability using our API
Measures 8 inches long
Weighs 12 ounces

$2,550.00
